Lennartsfors Raudhobu flex skog
- Engine four-stroke 9 Hp or 13 Hp
- With or without hydraulics
- Retractable control lever so you can ride on the machine
- Front/Back
- Handbrake
- Torque converter transmission
- Integrated motor winch
- Timber bunk
- Standard hand operated winch
- Chainsaw mount
- Storage box
- Differential lock
- Steel skid plate
- Heavy Duty rubber tracks with inside lugs
- Removable tooling point, mechanically or hydraulically
- Load capacity 1 ton
- Traction power 900 kp
- Speed 7 km/h
- Ground pressure 0,15 kg/cm3 at 500 Kg load
- Width 1080 mm
- Height 1120 mm (Transport mode)
- Length 1780 mm
- Weight 445 – 485 Kg
- Color Black or Green
- Option Hydraulics 21 litres/min Pressure 140 bar

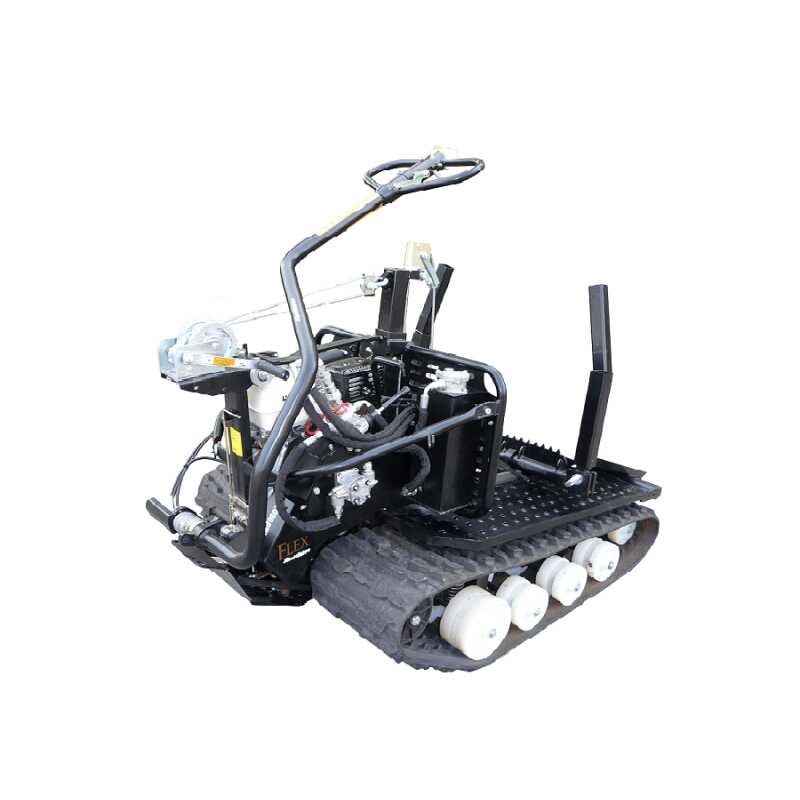

* The machine in the picture is additionally equipped with hydraulics and load plate. The hydraulics have a flow rate of 21 litres/min and press 140 bar to operate the accessories and the removable accessory attachment.
Lisavarustus
SELF-UNLOADING TIMBER TRAILER
Unique off-road characteristics. Easy to disassemble for transport. The trailer can be extended or shortened. Stands when empty.
TIMBER CART
The combined trailer is equipped with bogie and joint mount on JärnHästen and is extendable. The posts are foldable and the trailer can be equipped with a cargo platform.
LOADING PLATFORM FOR THE TIMBER CART
Platform for the timber cart, complete with a bracket for transporting other than timber, such as gravel, sand etc. The platform is mounted in the post brackets and has foldable and removable sideboards and tailboard
A GRIPPER TRAILER T1650
Gripper trailer T1650 without operation Crane 30-50 Max load 1650 Kg Reach 3,4 m Lifting force at 3,0 m 220 Kg incl. grab claw and rotator Lifting force at 1,2 m 450 Kg incl. grab claw and rotator Weight 448 Kg Length 3820 mm - 44200 mm
WINCH PLATE
The loading plate makes it easy to load larger logs from the rear. The loading plate is lowered to the ground and makes it easy to load the log with the winch.
PLANTING PLATFORM
Dimensions inside L 1197 mm B 1080 mm H 750 mm
UNIVERSAL LOADING BED
MOOSE HAULER/SKIDDER
The trailer is mounted with a joint mount on the machine and can be adjusted in height by turning the wheel bars 180 degrees. Through the low height at the rear, it is very suitable to winch up loads from the ground as eg. transporting a moose.
SKIDDING GRAPPLE
The log grab makes the job easier when moving large logs and brushwood. You can also easily shift the centre of gravity of your IronHorse Flex HI.
A GRIPPER TRAILER T1650
Gripper trailer T1650 without operation Crane 30-50 Max load 1650 Kg Reach 3,4 m Lifting force at 3,0 m 220 Kg incl. grab claw and rotator Lifting force at 1,2 m 450 Kg incl. grab claw and rotator Weight 448 Kg Length 3820 mm - 44200 mm
SKIDDER WHEELS
With the thinning cutter, you can easily cut coarse timber of any length. The thinning cutter is suitable for the Iron Horse, which is equipped with a motorised winch.
REMOVABLE LED LIGHTING
Removable REchargeable LED Lighting incl. bracket for JärnHästen. Use as working lighting when driving with JärnHästen or remove the lamp and hang it up at the workplace. Relatable Lumen 1000/2000 5000K Li-ion battery 7.4v – 8.8 Ah IP44 Dimensions 193x132x216 mm
PROTECTIVE COVERS
Shape sewn protection cover specially adapted for JärnHästen. Protects engine and control lever during transport and storage outdoors
SERVICE KIT
Service kit for IronHorses Classic and Flex manufactured after 2017 and onwards. Fits tiil IH2090PW/IH2013PW with motor winch. Variator belt, Belt for engine winch, Spark plug. Throttle cable, Handbrake cable
REMOVABLE STORAGE BOX
Fitted with hooks over the load shield and anchored to the machine with a simple snap-on attachment.
Convenient and high design for driving with a load with an attached box.
